Gorgeous Tiny House with a lovely Office/Living Room.


Tiny House Details:

FRAME

  • Baluchon trailer with paint optionUseful length 6 meters.

FRAMEWORK

  • Spruce class 2.

INSULATION

  • Sheep wool for the floor, Cotton, linen and hemp for the walls and wood fiber for the ceiling.

WINDOWS AND DOOR

  • Mixed aluminum / wood joinery. Double glazing.


HARDWARE STORE

  • Würth

RAIN SHIELD AND STEAM BRAKE

  • Proclimat rain shield and OuatEco steam brake (hygrovariable)

HOUSEHOLD APPLIANCES

  • De Dietrich electric water heater, Klarstein electric fridge, Sauter two-burner hob (with Twiny gas bottle), Whirlpool electric oven.

PARQUET / FLOOR

  • Solid spruce.

  • Blades screwed on joists.

BLANKET

  • Black bacac tree with anti-condensation felt.

CLADDING

  • Red cedar with anti-UV saturator and partial stain and burnt wood.

PANELING

  • Planed natural spruce and white raw spruce.

LAYOUT

  • Oak and spruce.

VENTILATION

  • Lunos double-flow VMC + bathroom air extractor.

ELECTRICAL EQUIPMENT

  • Legrand switchgear and LED lighting.

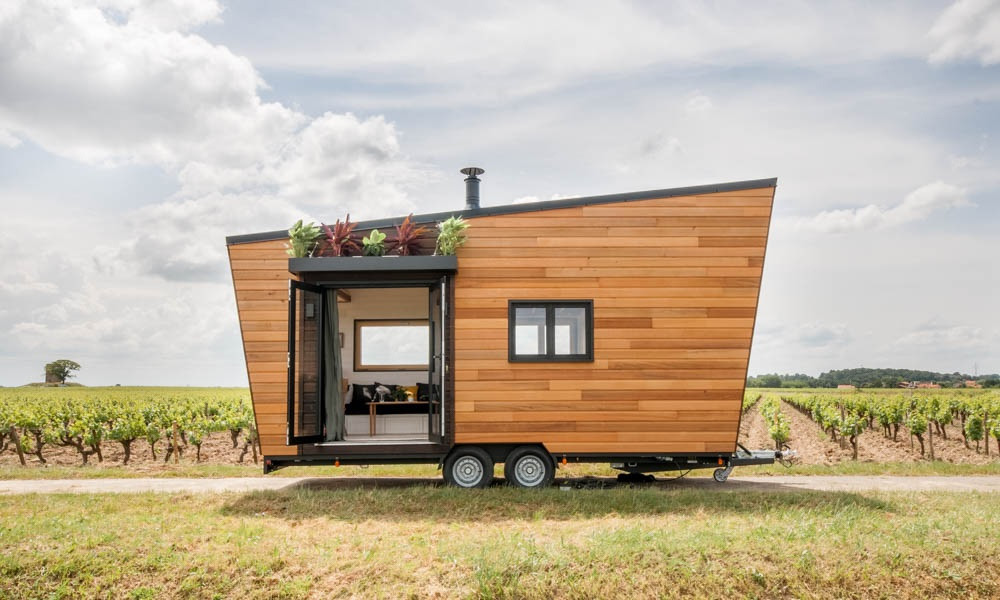

The Intrépide distinguishes itself from its predecessors thanks to an assertive single slope of 7m long (the trailer measuring 6m useful). The inclined roof ladders on both sides are fitted with LED spots that illuminate the two facades at night. The cladding in red cedar is available in three shades on the entire cladding.

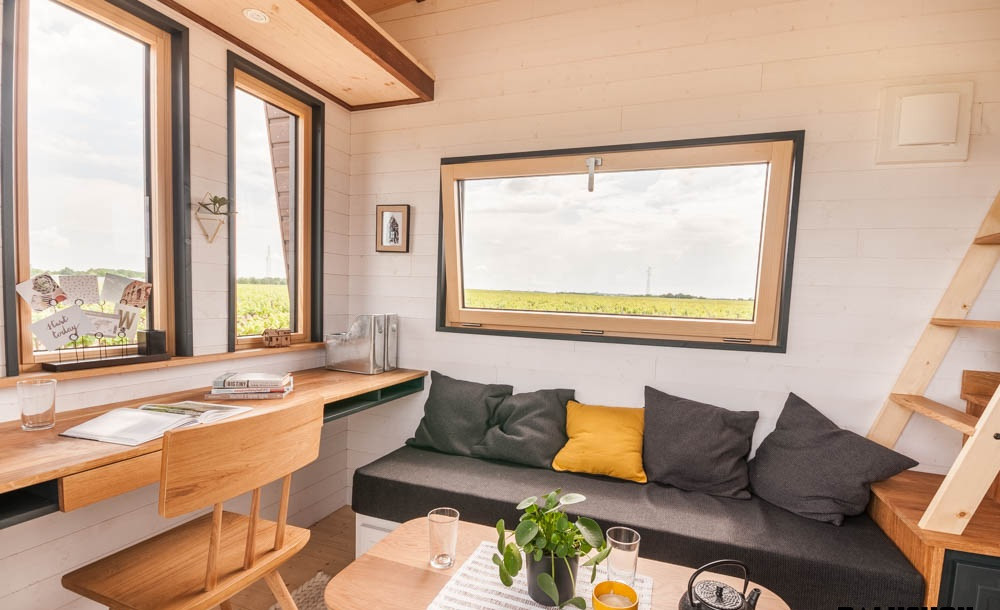

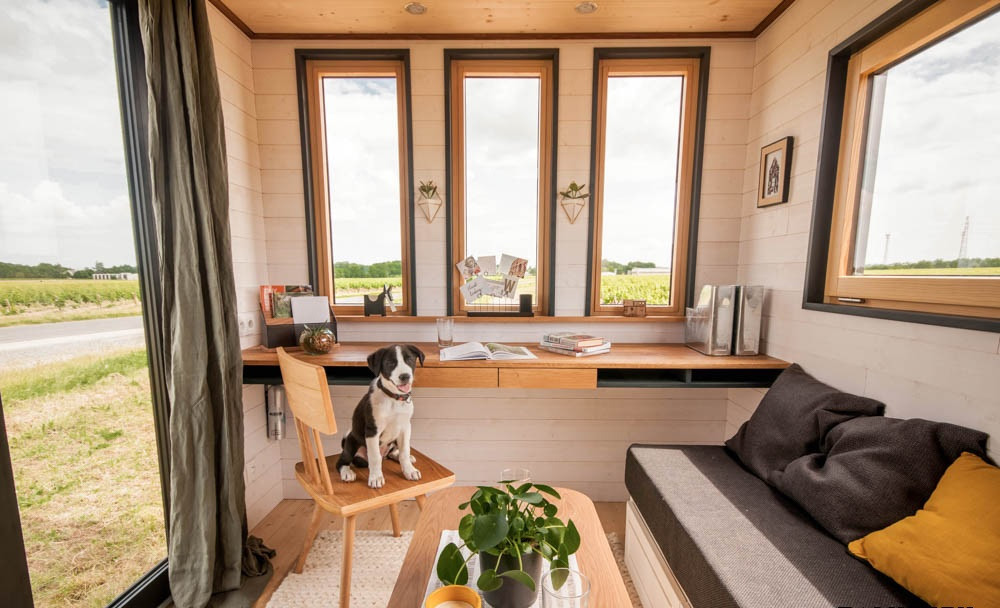

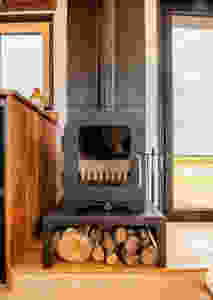

The entrance is via a large side bay which gives access to the lounge. Above the entrance is a canopy / flower box that protects the door from the rain.The living room is made up of a large office that occupies the entire width of the room, a 1.80m bench seat with integrated storage. A large shelf above the desk provides additional storage in this room. A wood stove to the right of the entrance will heat the entire space in winter.

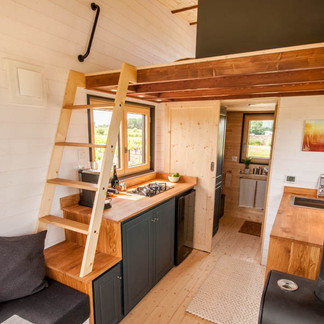

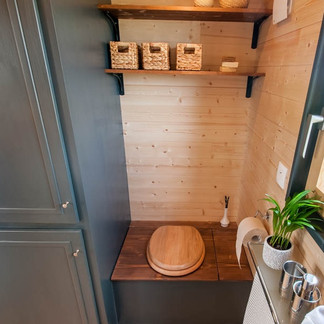

The kitchen is divided into two pieces of furniture that face each other. The equipment included in the kitchen is a fridge, a double-flow VMC, a stainless steel sink, an oven, hotplates with their gas bottle and a hot water tank. Here again, the worktops are in solid oak. In the bathroom at the end, there is a 80x80cm shower, dry toilet with stainless steel bucket and chip compartment, as well as a large wardrobe and a washer-dryer. Above the machine, there is a clothes rail for drying clothes if necessary.


You access the bedroom (a large mezzanine 3m long by 2.15m wide) thanks to a fixed ladder located in the extension of the living room bench.The Intrépide set off for Annecy. It is the main accommodation of Emilie, Damien and their dog Janpol!

Build BY: www.tinyhouse-baluchon.fr
