Introducing 'Orca,' latest offering that combines the best features of previous conversions, enhanced with additional amenities, and featuring a bright open theme complemented by solid walnut accents in the living area. Built on the L4 H2 Citroen Relay/Peugeot Boxer or Fiat Ducato base vehicle, this conversion represents most versatile design yet.
Exterior
Sliding tinted window in sliding door.
2 x fixed tinted windows on rear doors
2 x sliding windows either side of the fixed bed.
Fiamma F80s awning.
Awning LED light and rain protector rail.
Thule electric slide out step.
25 litre underslung LPG gas tank with electrical on board on/off switch and level gauge.
1 x 82 litre fresh water tank (fully winterized down to -25c with insulation and automatic defrost element).
1 x 63 litre grey water tank (fully winterized down to -25c with insulation and automatic defrost element).
Solar
Victron mains charger.
Victron 50amp MPPT smart solar controller (with full bluetooth connectivity via smartphone app).
Victron BMV battery monitor in living area showing battery time remaining at current use (with full bluetooth connectivity via smartphone app).
Victron DC-DC alternator (charges leisure batteries while driving)
Victron 500w inverter connected to a double 240v socket (with full bluetooth connectivity via smartphone app)
220Ah AGM leisure batteries.
270w solar panel
240v hook up for when on campsites/mains electric available (charges leisure batteries also)
Cab
Double passenger seat (can be swapped for a single passenger seat for an extra £900+VAT)
Reversing camera with 2 views (directly behind & birds eye)
Handmade drop down curtain separating cab from living area
Engine battery cut off switch (to prevent battery drain when not in use and anti-theft device)
Berths and seating
4 berths in total
1 x 191 cm x 135 cm double fixed bed at rear
1 x 180 cm x 50 cm single bed running across the van
1 x 195 cm x 53 cm single bed running by sliding door
Seating – 4 seats in total (3 in cab and 1 in rear) all forward facing with 3 point seat belts. Rear seat is ISO fix (can be made up to 5 seats, 2 being ISO fix for an extra £1050+VAT)
Rear living area

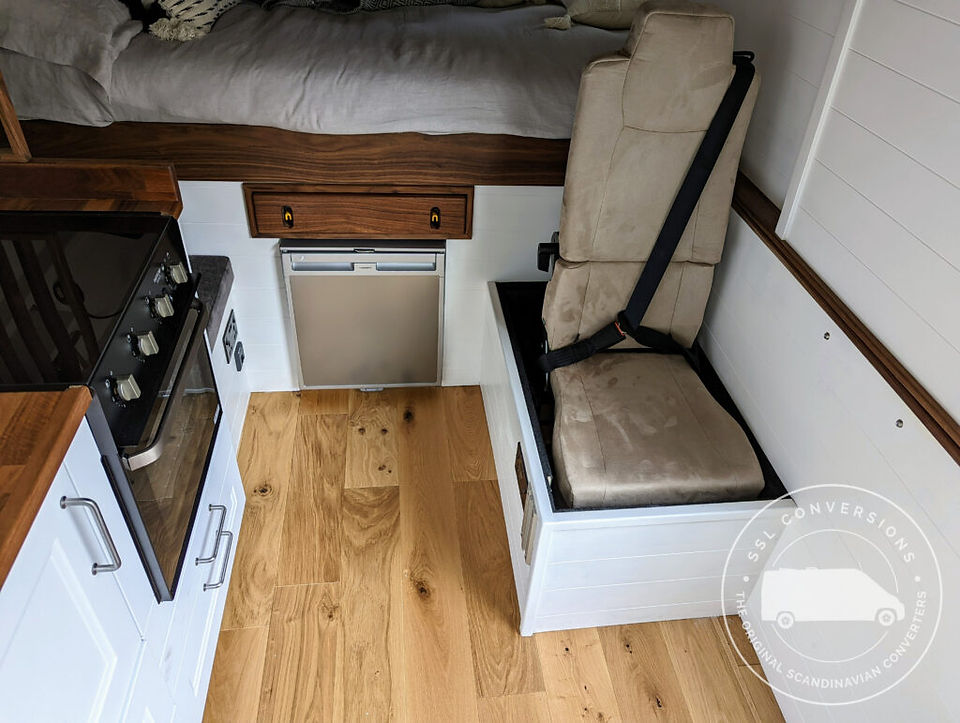

191 cm x 135 cm fixed slatted bed CRX 65 litre 12v fridge/freezer. 2 x MaxxAir deluxe fan with fly screen and shades Garage area with heavy duty rubber matting (contains solar set up – see specs to the right) 2 x USB sockets 2 x LED reading lights with inbuilt USB sockets Main living area

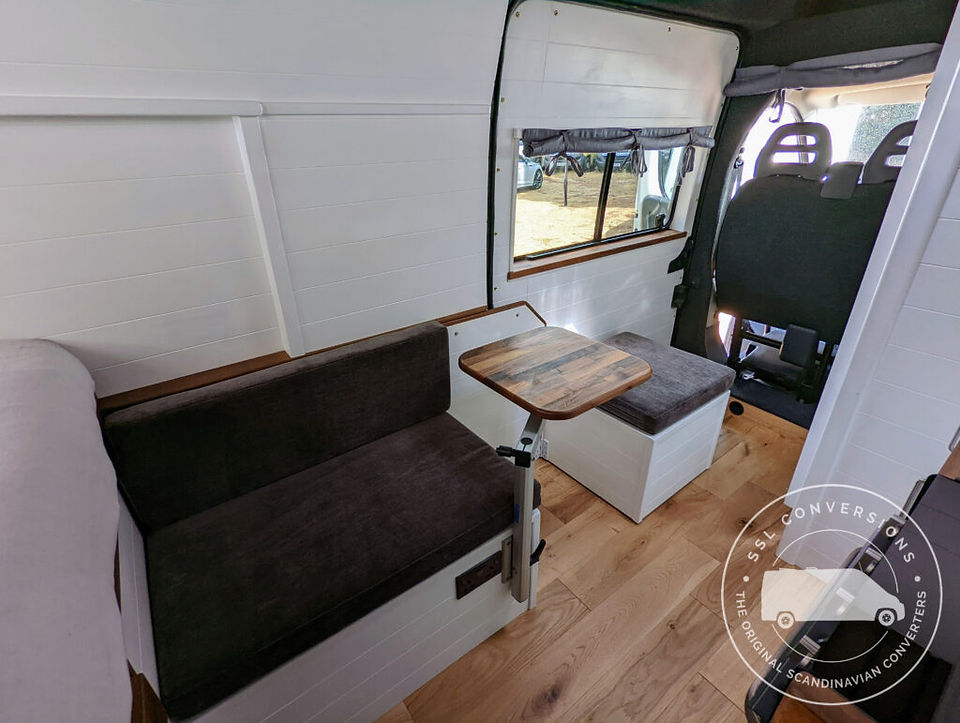

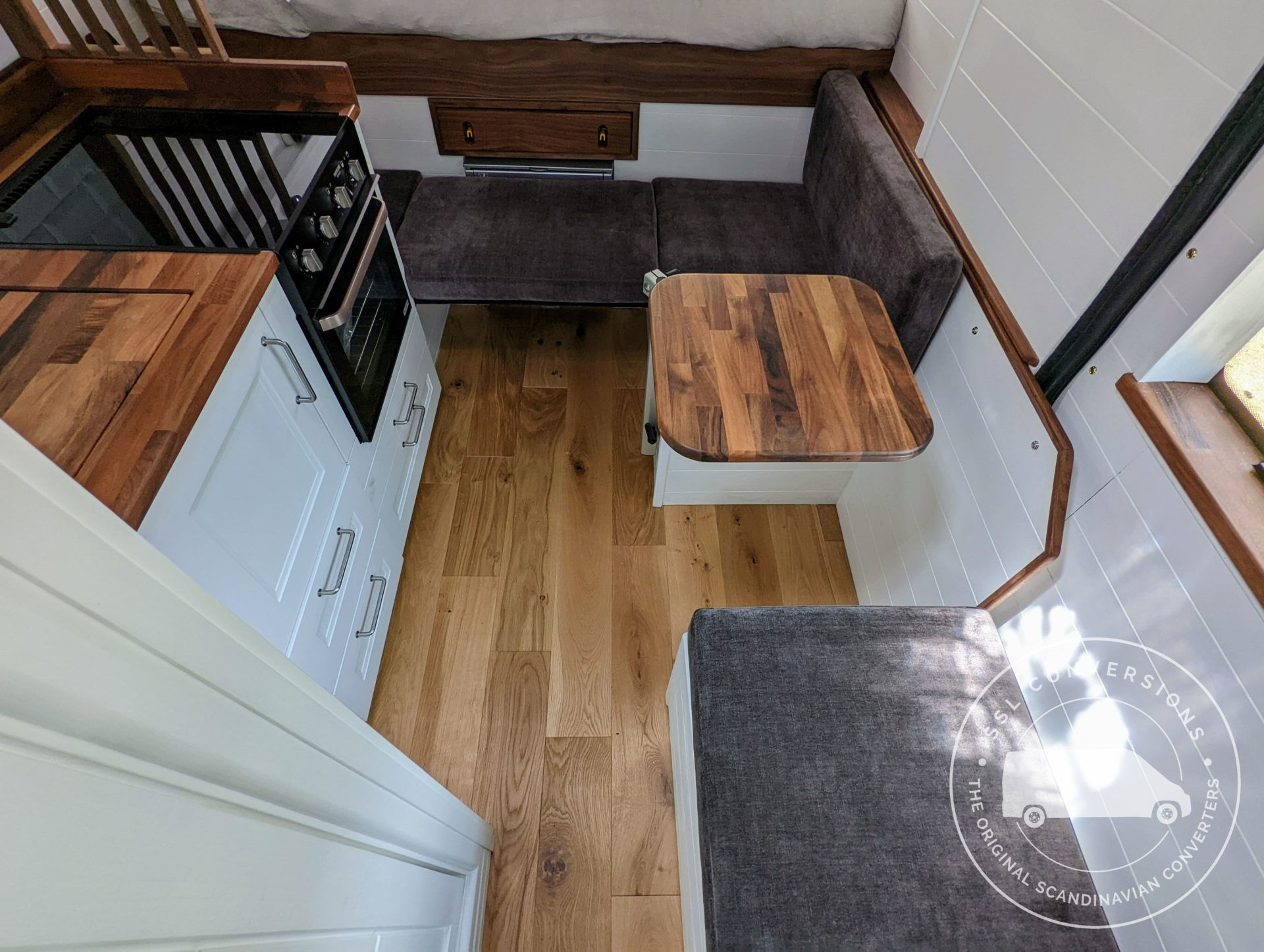

Multi-configuration dining area with unique swivel box seats and Lagun swivel table offering the following choices:
1 x large ‘L shaped’ seating/dining area – 180 cm x 195 cm 2 x separate dinette areas. 1 x dinette by sliding door + 1 bench seat widthways. 1 x dinette widthways + 1 bench seat by sliding door. Area converts to 2 single beds. Aguti fold away/removable seat with an integrated 3 point seat belt built into the dining area. Digital marine water tank level meter (highly accurate as measures water pulled through pipes). Truma Combi 2E heater/boiler (works on LPG or 230v electric). Slide out, solid wood dining table with extra heavy duty brackets. Solid wood window sills on all 5 windows. Eye level open storage on each side. Rich walnut trim features running throughout the living area. Apple/Android wireless phone/smart watch charger. 6 x touch sensitive ceiling LED spot lights. 3 x double 230 v sockets

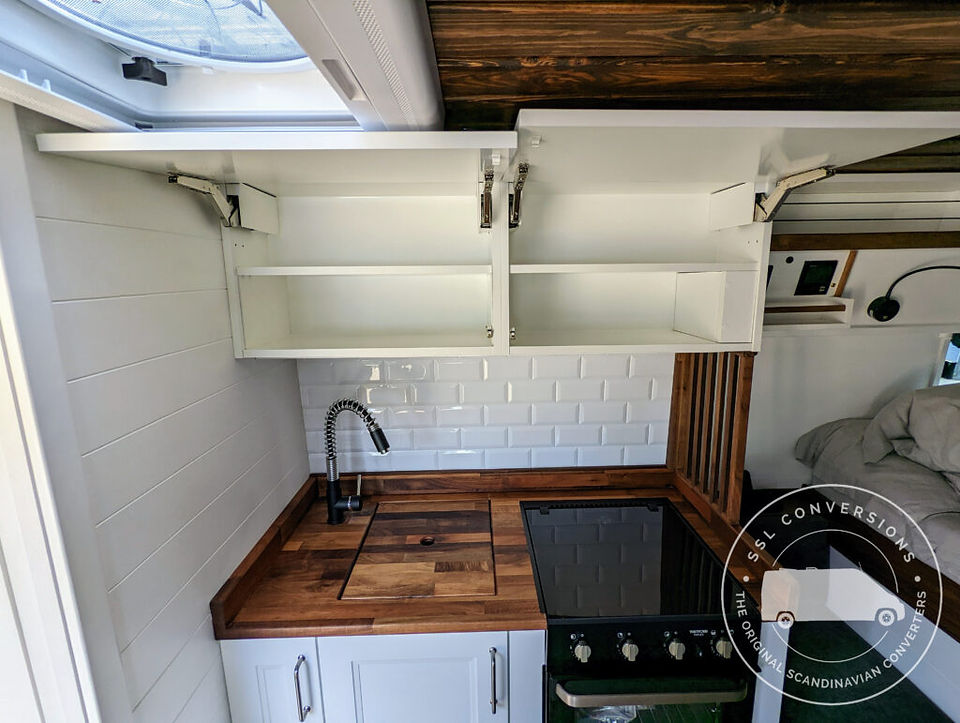

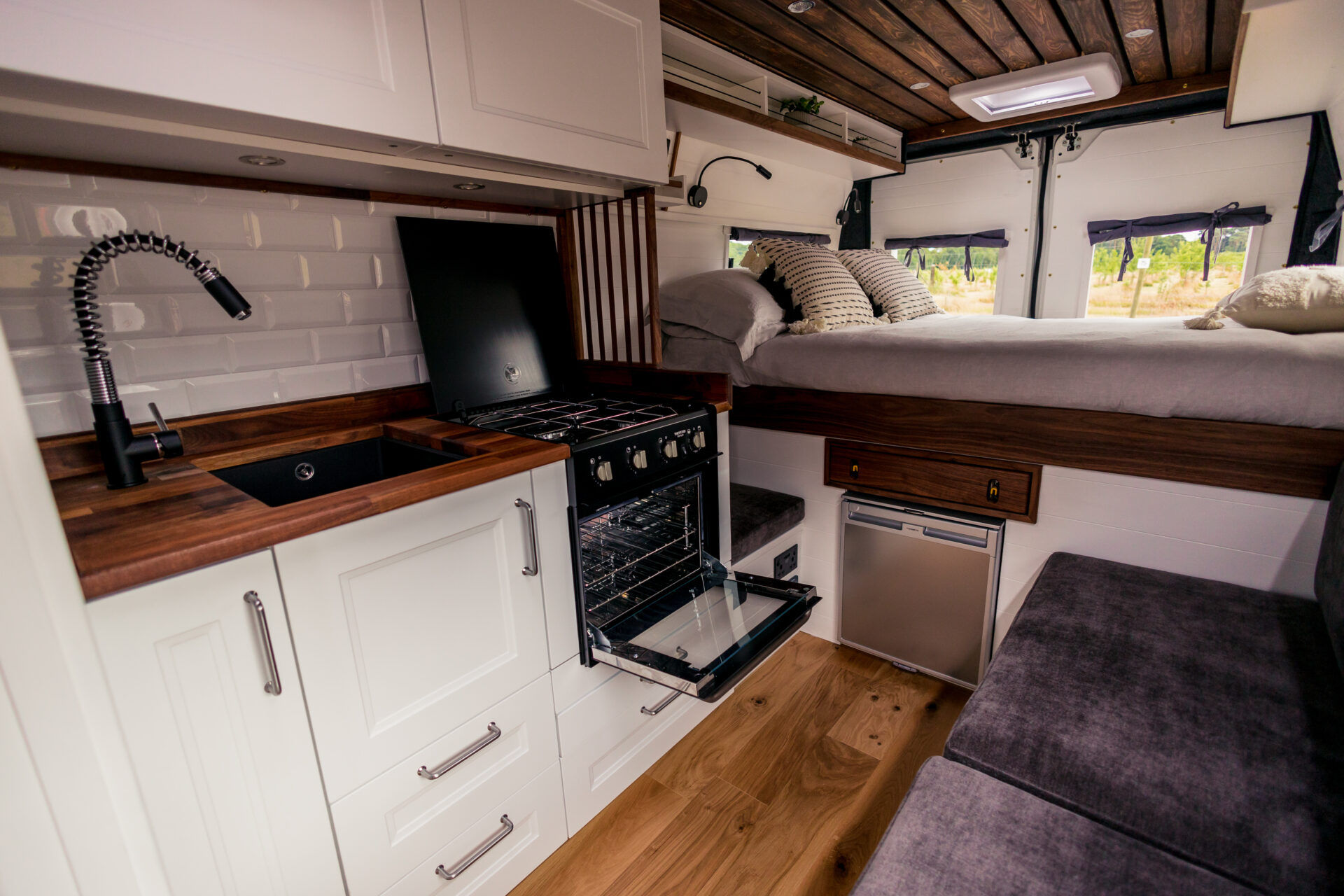

Kitchen
Thetford triplex gas oven, grill and 3 ring hob
MaxxAir deluxe fan with fly screen and shade
Solid wood kitchen worktop with double sink insert/chopping board
Full size domestic sink
Black domestic tap with multi directional hose
Full height kitchen splash back
Slatted real wood feature separating kitchen area from single dining seat
Under sink cupboards, soft close drawers, soft close cutlery drawer with bamboo divider
2 x eye level soft close wall cupboards
Under cabinet touch sensitive LED spotlights over the kitchen.
Front
Spacious shower room with reco walls, space saving concertina door, and hand made duck board.
LED light in shower room.
Micro Heki rooflight.
Matching black shower head and mixer tap.
Nature’s Head composting toilet (removable) with electric fan.
Soft furnishings
Handmade drop-down cab curtain
Handmade drop-down curtains on all windows
Premium seat cushions
Premium foam mattress
Beds Description
Full sized fixed double bed (191 cm L x 135 cm W) running width ways at the rear
Dining area/L shaped lounge converts to 2 single beds. Bed running widthway measures 180 cm L x 50 cm W. Bed running length ways measures 195 cm L x 53 cm W
Vehicle Spec
Registered Type: Motor Caravan - approved
Fuel Type:Diesel
Transmission:Manual
Emissions Compliance:ULEZ Compliant
Belted Seats: 4 Belted Seats
Driving Side: Right-Hand Drive
Vehicle Length: 6.36 meters
Vehicle Height:2.52 meters
Vehicle Width: 2.05 meters
Converter Type: Professional - Handcrafted
Conversion Condition: New
Gas Sign-off: Habitation Certificate
Max Weight (MAM, GVW or MTPLM): 3,900kg
Unladen Weight: 3,400kg
Unladen Weight Verified: Yes - the vehicle has been weighed since completio
Price: 59,995£
